Sahmbi Innovations

Water Level Controller with TIMER

Water Level Controller with TIMER

Regular price Rs. 2,499.00
Regular price Rs. 3,799.00 Sale price Rs. 2,499.00
Sale Sold out
Taxes included.
Color: White

Sahmbi Water Level Controller with Timer Control/Protection and German Magnetic Float Sensor - Metal Body

About this Item:-
  • TIMER CONTROL, MANUAL ON/OFF & GERMAN MADE SENSOR: Water Overflow Controller with Timer, Manual ON and Auto Off, Along with German Made Magnetic Sensor : 1 Year Warranty.
  • MULTIPLE TIMER OPTIONS AND PROTECTION : Peace of Mind with Timer Control which switches OFF Pump/Motor after pre-set time or Tank Full whichever is earlier (Options of Approx. 7.5, 15, 30, 60 Minutes to Switch OFF the Motor Automatically).
  • HIGH QUALITY COMPONENTS : High Quality PCB, Circuit and Components, Stabilized Controlled Device (Consistent Performance of Device even in Electricity Fluctuations).
  • KEY FEATURES : Tank Full Indication, Pump/Motor ON Indication, Power ON Indication, Push Button Switch to start the Pump/Motor (Suitable for Single Phase Motor).
  • HEAVY DUTY : Powder Coated long lasting Metal Body, Quality Terminals to withstand heavy electrical load. Controller Suitable for Single Phase Pump/Motor upto 2HP.

Product Description

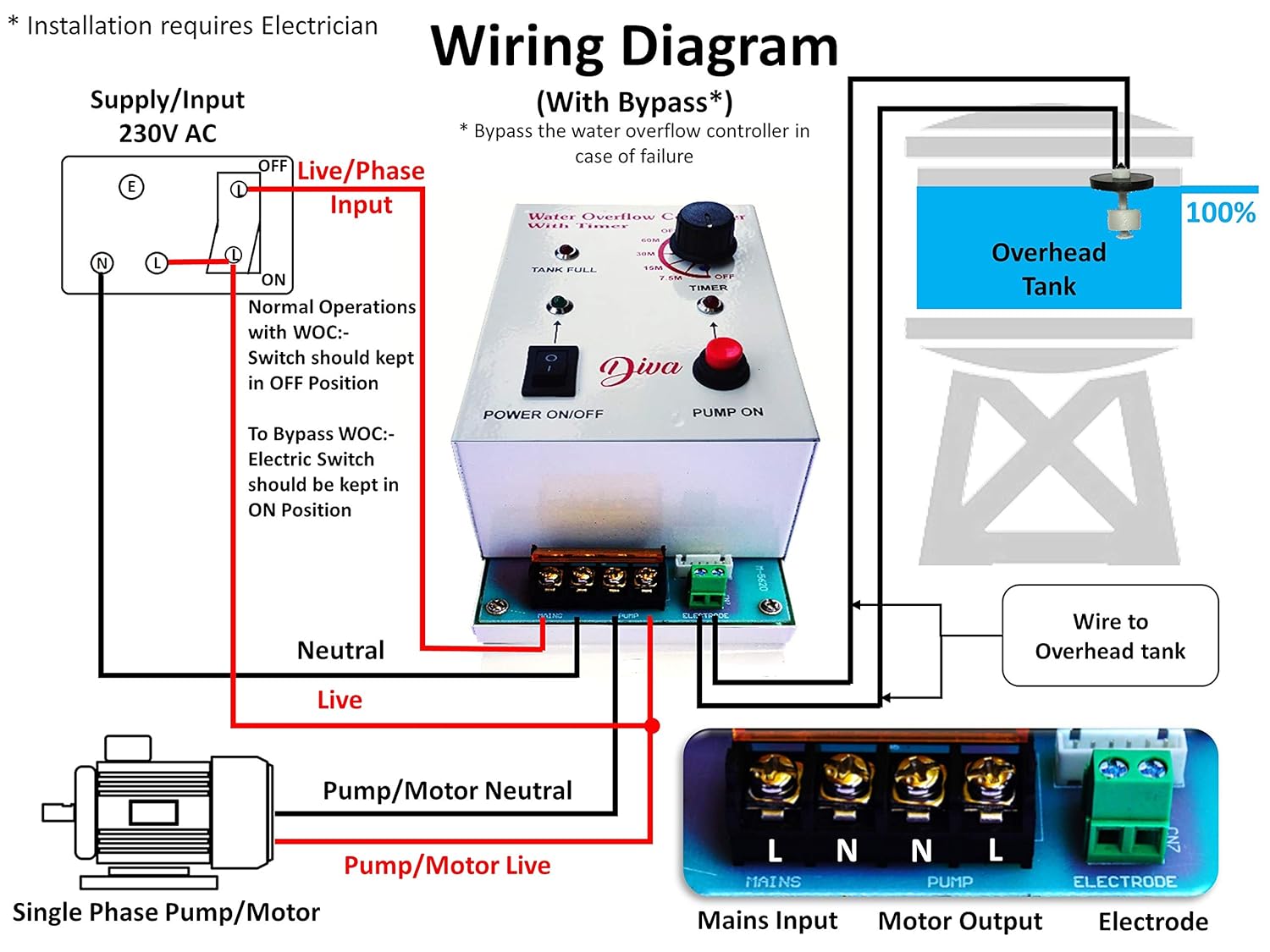

FREE YOUR WORRIES from Overflowing Water due to uncontrolled running of Pump/Motor and save Water, Electricity & Building both. This Water Overflow Controller has a TIMER FEATURE which allows to switch off Pump/Motor after preset time. Manual feature of switching ON the Pump/Motor instead of Auto ON to avoid Pump/Motor running at all times. The model comes with QUALITY Magnetic Sensor (MADE IN GERMANY) and HIGH-QUALITY RELAY to ensure trouble free operation. Suitable for SINGLE PHASE Pump/Motor upto 2 HP. This product is built with the BEST QUALITY ELECTRONIC COMPONENTS, which not only saves water and electricity, but ensures trouble free and non-stop operation. Please read instruction for Installation.

UNIQUE FEATURES - MANUAL ON AND AUTO OFF - HELPS SAVE MOTOR RUNNING DRY

Water Level Overflow Controller  Water Level Controller Water Overflow Controller German Sensor

Push button to Manually switch ON the Pump/Motor. LED Light will Glow when Pump/Motor is ON

WATER TANK FULL INDICATION When the Tank is Full this LED will Glow indicating that tank is full

PUMP / MOTOR TIMER SWITCH Timer switches off the Pump / Motor after preset time 15 30 and 60 minutes

UNIT POWER ON WITH LED INDICATION

Switch to Power ON the Water Level Controller, when the Unit is in Power ON Mode, LED will Glow

PUMP / MOTOR ON SWITCH WITH LED INDICATION

Push button to Manually switch ON the Pump/Motor. LED Light will Glow when Pump/Motor is ON

WATER TANK FULL INDICATION

When the Tank is Full this LED will Glow indicating that tank is full

PUMP / MOTOR TIMER SWITCH

Timer switches off the Pump / Motor after pre-set time of 7.5, 15, 30 and 60 minutes

DOUBLE PROTECTION AND CONTROL

Double Protection

Peace of Mind with Timer Control which acts as additional protection and switches off

Sensor Control

DOUBLE PROTECTION

Features Double Control & Protection with Timer and Sensor, Will Switch OFF Pump / Motor after pre set Time or Tank Full whichever is earlier

TIMER CONTROL

Peace of Mind with Timer Control which acts as additional protection and switches off Pump / Motor after pre-set time. When Kept in OFF Position the Pump / Motor will switch off through Sensor when Tank is Full

SENSOR CONTROL

The Sensor helps switching OFF the Pump / Motor when the Water Tank is Full. Sensor can be installed at a level where Tank Full is required


Stabilized Controlled Device

STABALIZED CONTROLLED DEVICE


Consistent Performance of device even in Electricity Fluctuation

High Quality Electronic Components

PREMIUM COMPONENTS


High quality fire retardant PCB, premium circuit, High quality Relay and components used.


Heavy Duty Electrical Terminal

QUALITY TERMINALS


Heavy Duty Mains Terminals to withstand electrical load easily during start-up current and continuous running of Motor

Made in Germany Magnetic Float Sensor

MADE IN GERMANY SENSOR


Magnetic Float Sensor made in Germany, ROHS, REACH, IP67 Compliant


Powder Coated Metal Body

POWDER COATED METAL BODY

Heavy Duty Powder Coated Long Lasting Metal Body which helps in better heat dissipation.
