Sahmbi Innovations

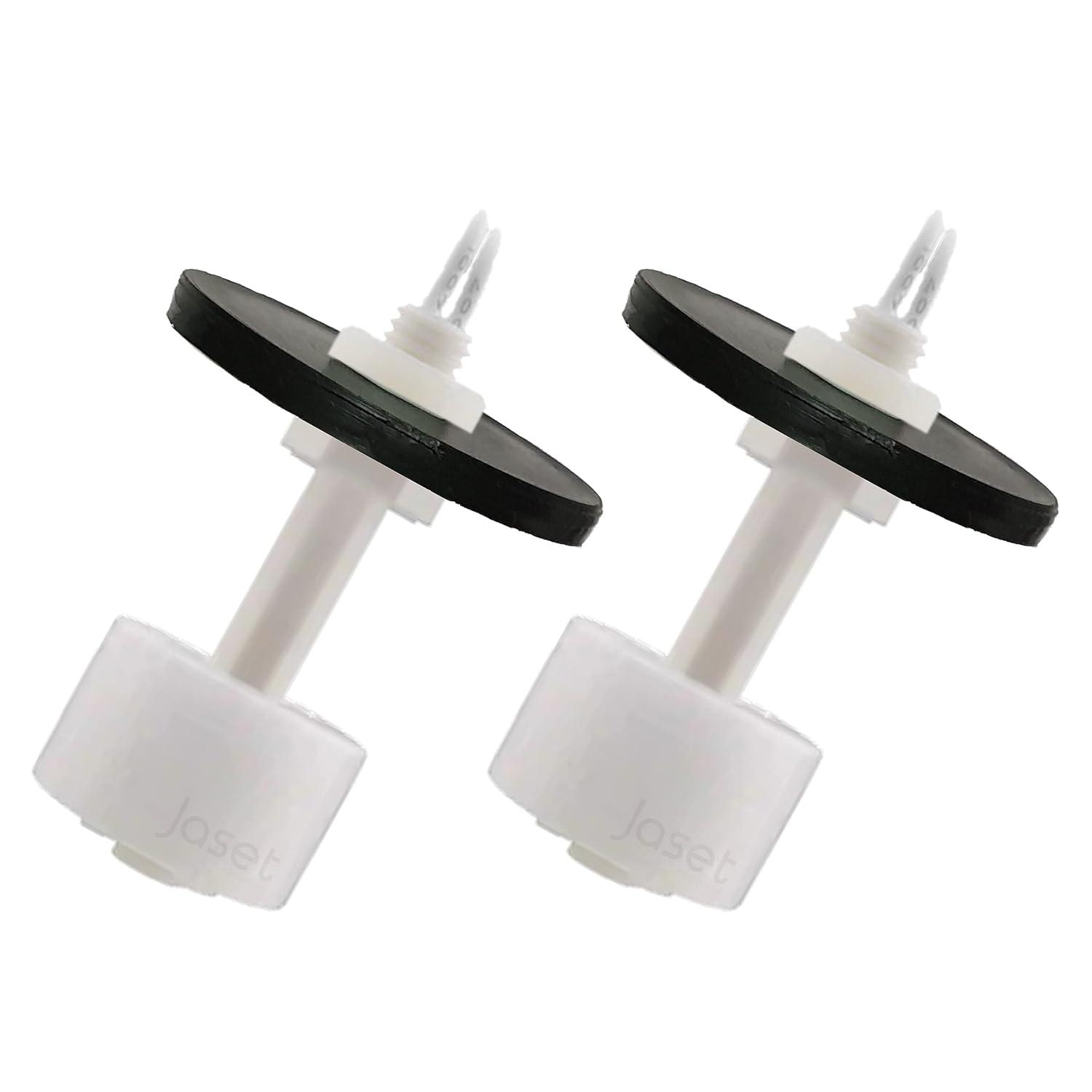

Magnetic Float Sensor Switch (Set of 2pcs)

Magnetic Float Sensor Switch (Set of 2pcs)

Rs. 759.00
Rs. 1,398.00 Rs. 759.00
Sale Sold out
Taxes included.

Sahmbi Magnetic Float Sensor Switch - Liquid Level Sensor for Water Level Controller - Normally Open Type (Color-White) - Pack of 2

About this item:-

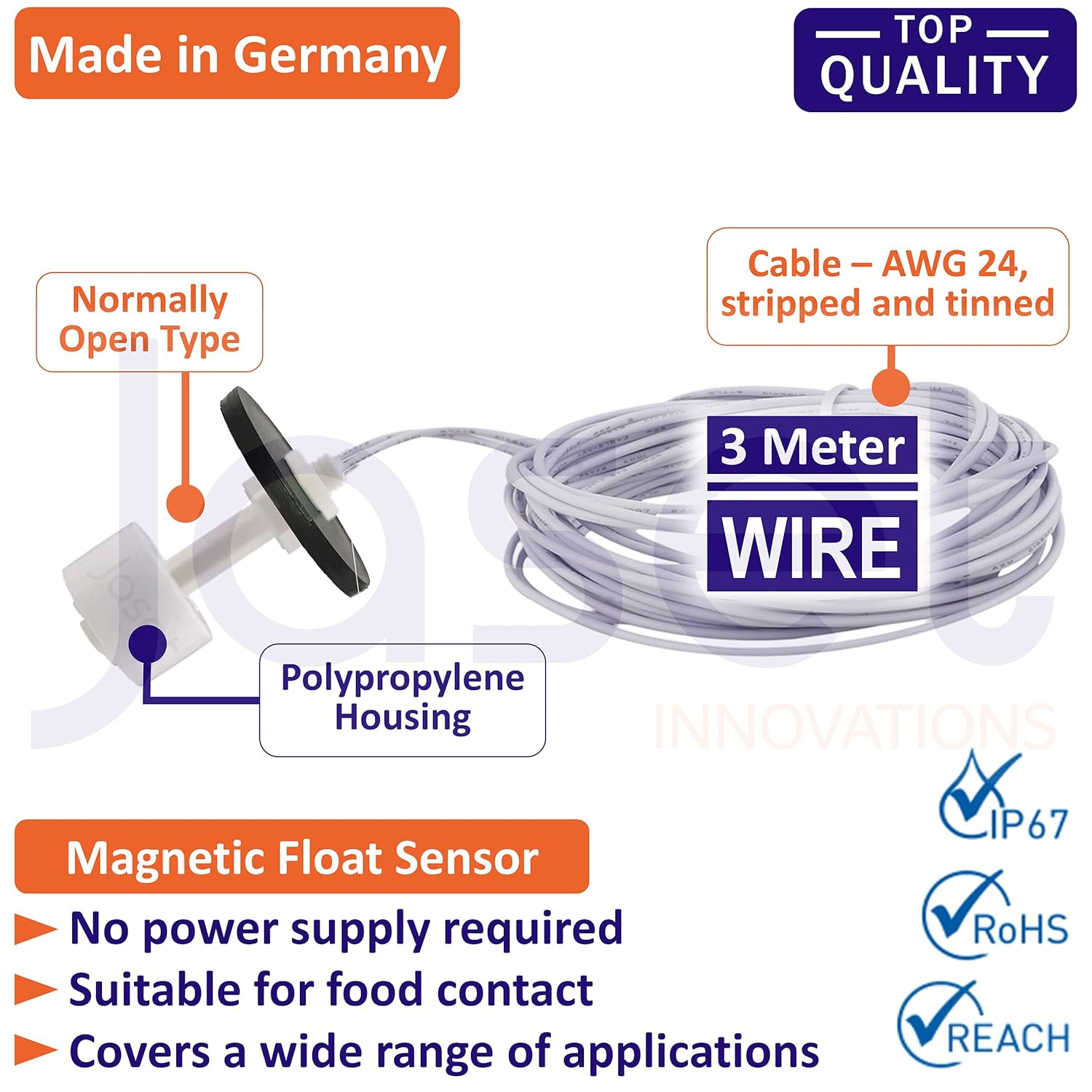

  • MADE IN GERMANY : Normally open type high quality with advanced magnetic, reed switch technology float sensor with approx. 3 Meter wire length.
  • ROHS, IP67 and REACH COMPLIANT : High quality polypropylene housing (Corrosion free). Lead free and comply with RoHS directive.

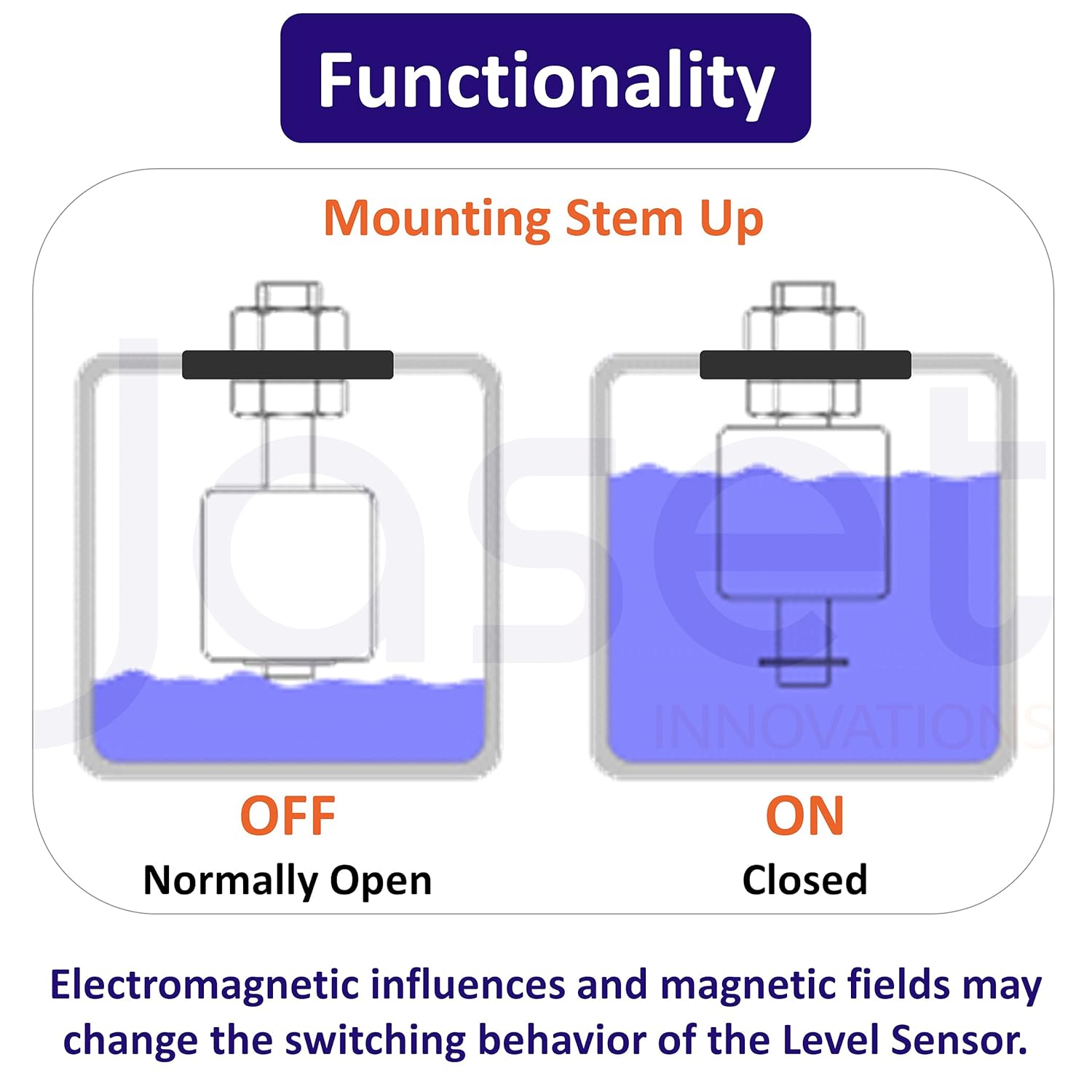

  • NO SEPARATE ELECTRIC / POWER SOURCE REQUIRED : The sensor does not require any electric source and it works on the principle of Reed Switch and Magnet which help switching ON and OFF when the float moves up and Down.
  • MECHANICAL SWITCH : It acts as a mechanical switch which is installed on top of a liquid surface and as the liquid level goes up and down it performs switching ON AND OFF.
  • CAUTION : The sensor may get damaged if connected to electric current or higher load than specified.

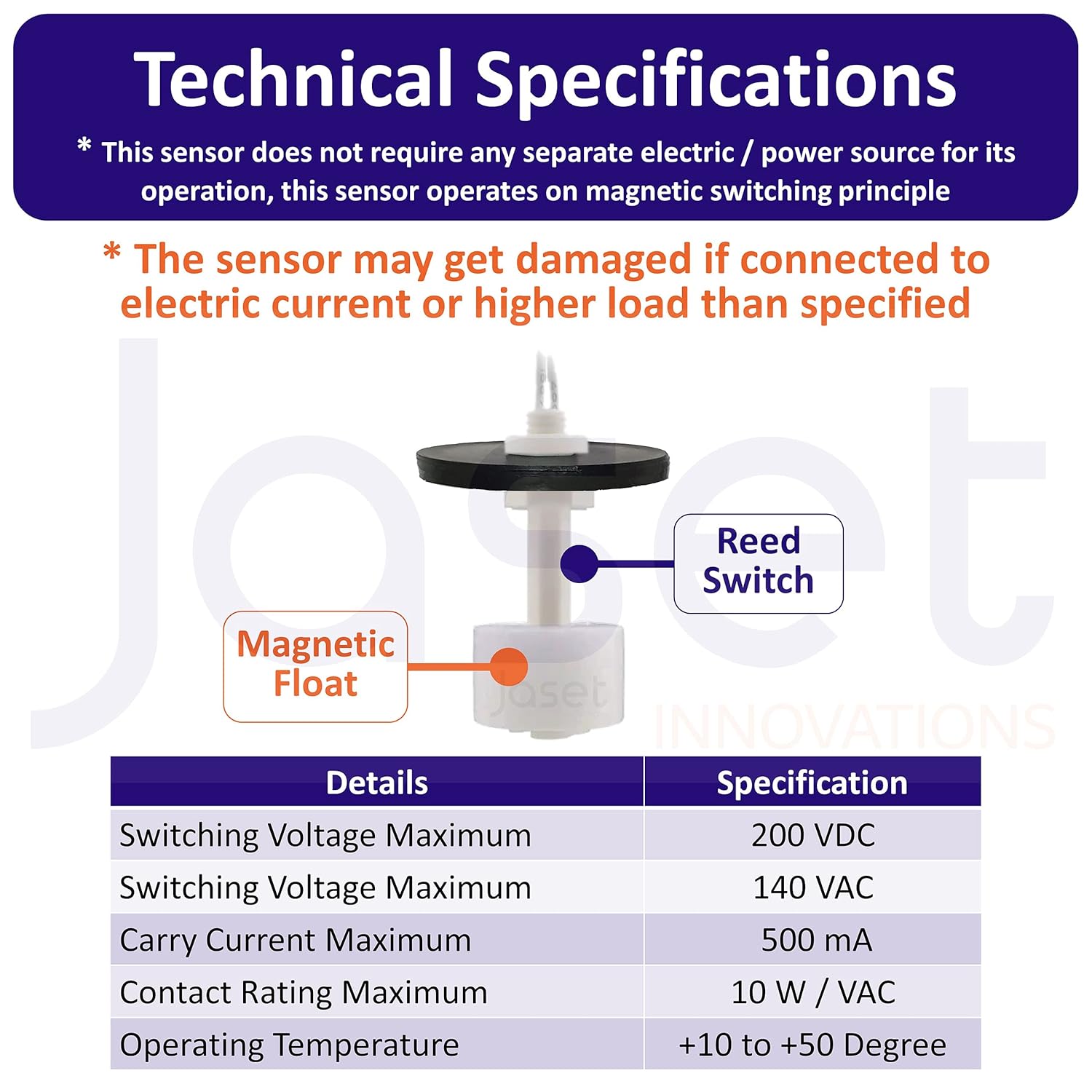

  • TECHNICAL SPECIFICATIONS : Switching Voltage Maximum = 200 VDC, Switching Voltage Maximum = 140 VAC, Carry Current Maximum = 500 mA (Ideal recommended 5 to 50 mA), Contact rating maximum = 10 W / VAC, Operating Temperature +10 to +50 Degree Celsius.

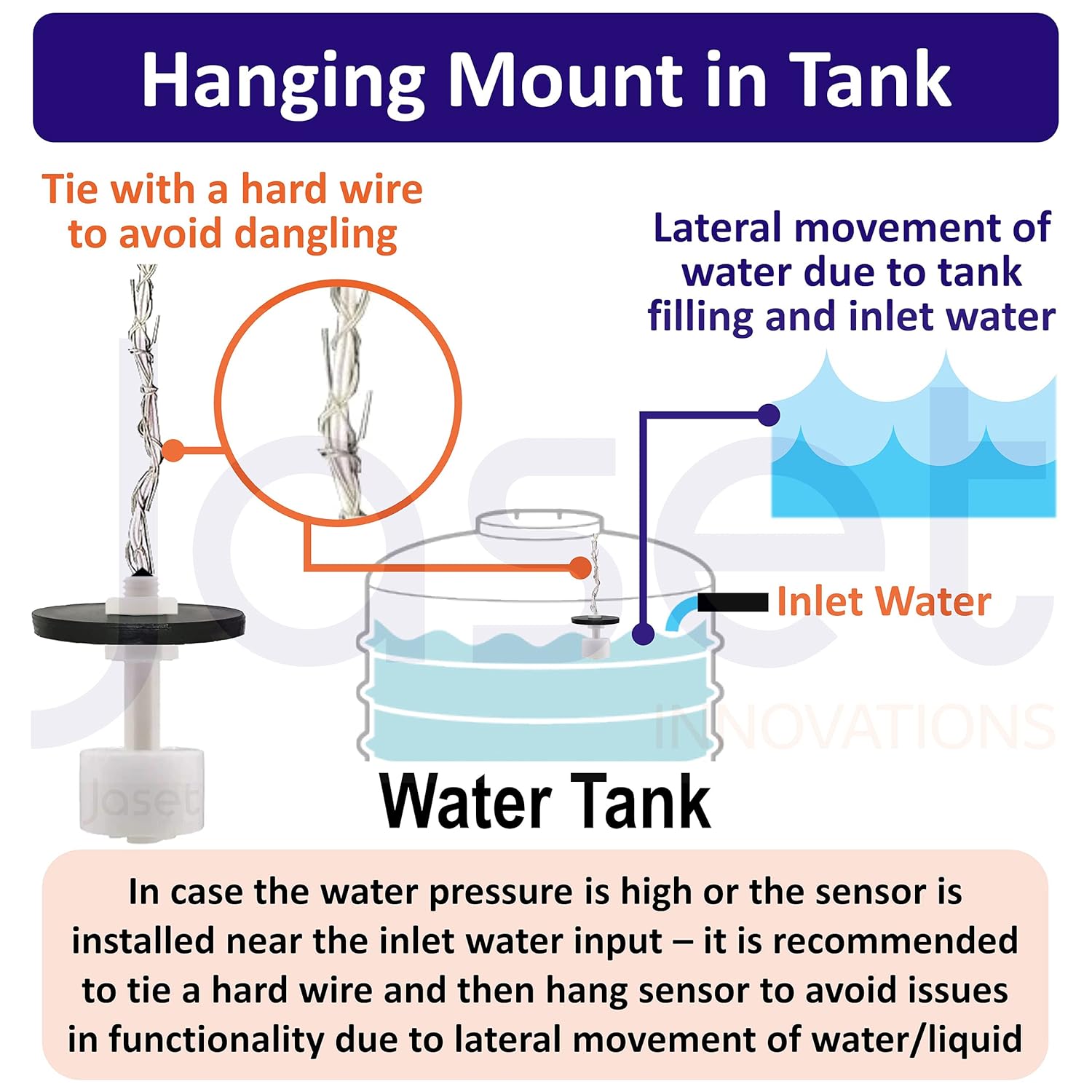

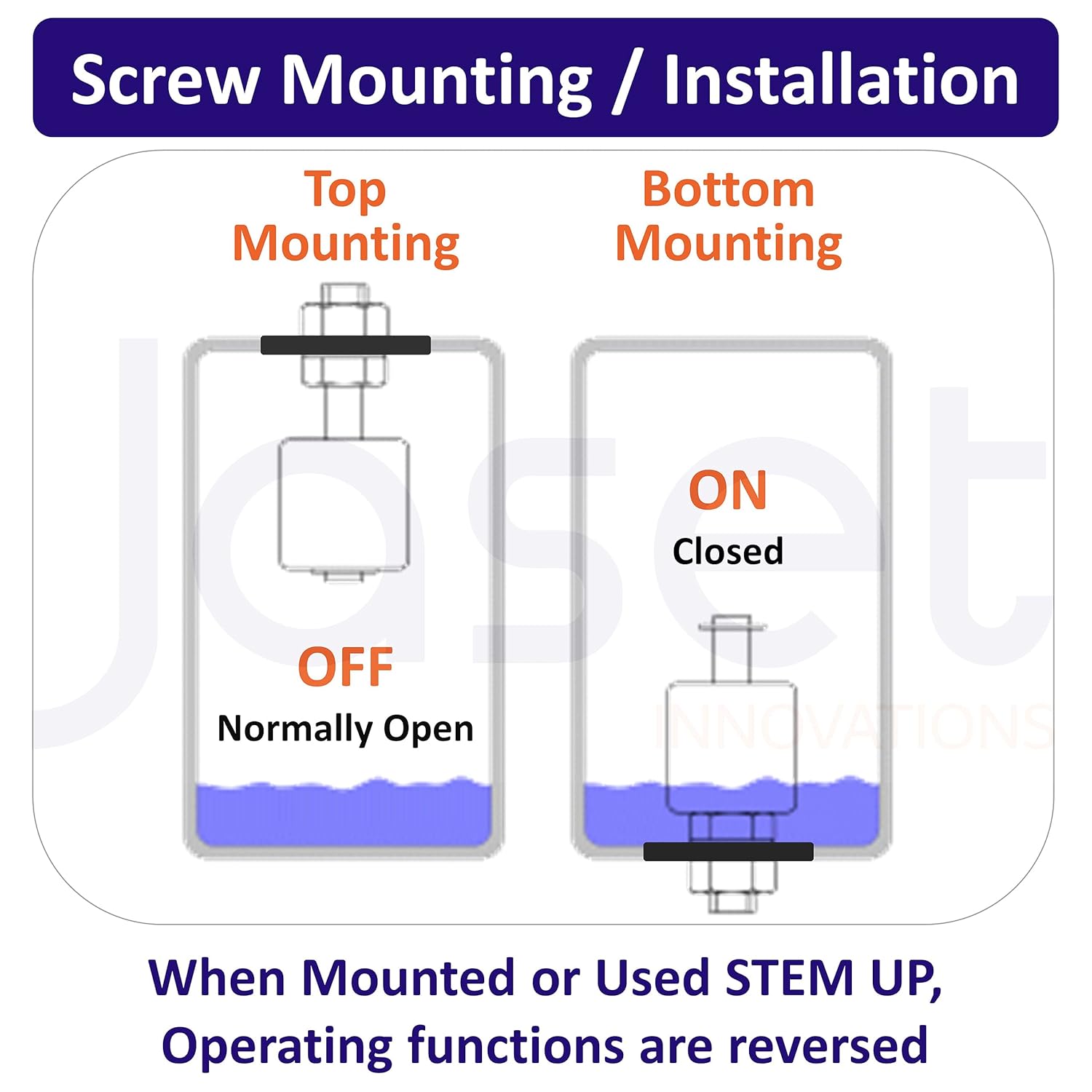

  • SUITABILITY AND MOUNTING RECOMMENDATION: All types of Water Level Controllers, For Screw and Hanging Mount please refer to Images.

Product description

MADE IN GERMANY MAGNETIC FLOAT SWITCH to sense the level of liquid. Based on REED SWITCH TECHNOLOGY and does not require separate electric / power source. NORMALLY OPEN type when the float ball rises or falls due to the liquid the magnetic ball causes the reed switch to turn ON. RoHS Complaint, IP67, Reach Compliant, FDA APPROVED. Ideally Suitable for most types of Water Level Controllers.
